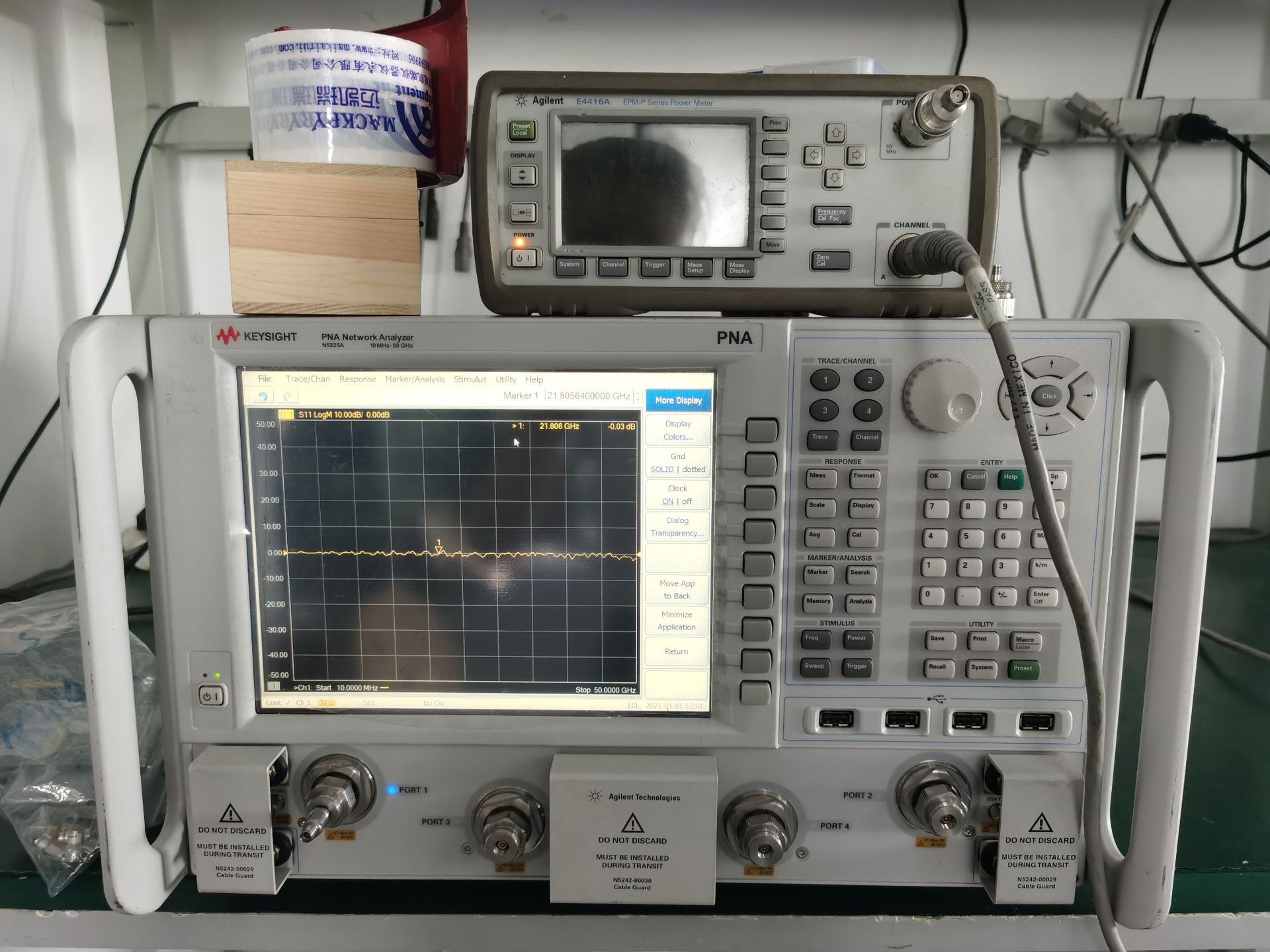

N5225A网络分析仪50G N5225B参数 keysight N5225A N5225B

• Keysight N5225A PNA微波网络分析仪10M-50GHz产品品牌：Keysight/是德主要特性和功能：技术指标：

•

  Hardware options
  N5225A-200 2 ports, single source, base hardware configuration
  N5225A-201 2 ports, single source, with configurable test set
  N5225A-210 2 ports, single source, with metrology configuration
  N5225A-217 2 ports, single source, configurable test set, extended power range
  N5225A-219 2 ports, single source, configurable test set, extended power range, bias-
  tees
  N5225A-400 4 ports, dual source, base hardware configuration
  N5225A-401 4 ports, dual source, with configurable test set
  N5225A-410 4 ports, dual source, with metrology configuration
  N5225A-417 4 ports, dual source, configurable test set, extended power range
  N5225A-419 4 ports, dual source, configurable test set, extended power range, bias-
  tees


  Additional capability
  N5225A-008 Pulsed RF Measurements
  N5225A-010 Time Domain
  N5225A-020 Add IF inputs
  N5225A-021 Add pulse modulator to internal first source
  N5225A-022 Add pulse modulator to internal second source
  N5225A-025 Add four internal pulse generators
  N5225A-028 Noise figure measurements using standard receivers
  N5225A-080 Frequency offset measurements
  N5225A-082 Scalar calibrated converter measurements
  N5225A-083 Vector and scalar calibrated converter measurements
  N5225A-084 Embedded LO measurements
  N5225A-086 Gain compression application
  N5225A-087 Intermodulation distortion measurements
  N5225A-118 Fast CW Mode
  N5225A-460 Integrated true-mode stimulus application
  N5225A-551 N-port calibrated measurements


  N5225A-088 Source phase control
  N5225A-302 Application for use with temperature-characterized CalPods
  N5225A-301 Application for use with standard CalPods
  N5225A-089 Differential and I/Q devices application
  N5225A-007 Automatic Fixture Removal
  N5225A-015 Dynamic Uncertainty for S-Parameter Measurements
  N5225A-090 Spectrum Analyzer
  N5225A-093 Extended Spectrum Analyzer to 110 GHz
  N5225A-094 Extended Spectrum Analyzer above 110 GHz
  Calibration Software for Self-Maintainers
  N5225A-897 Built-in performance test software for inclusive calibration, perpetual
  license
  N5225A-898 Built-in performance test software for standards compliant calibration,
  perpetual license
  Calibration documentation
  N5225A-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
  N5225A-A6J ANSI Z540-1-1994 Calibration
  N5225A-UK6 Commercial calibration certificate with test data
  Accessories
  N5225A-1CP Rack mount kit for installation with handles
  N5225A-1CM Rack mount kit for installation without handles
  N1966A 脉冲/IO 适配器
  N6171A MATLAB 软件

N5225A网络分析仪50G N5225B参数主要特性与技术指标

10 MHz 至 50 GHz

2 端口（单信号源）或 4 端口（2 内置信号源）

127 dB 系统和 132 dB 接收机动态范围、100,001 个点、200 个通道、15 MHz 中频带宽

高输出功率（+13 dBm）和宽功率扫描范围（38 dB）

动态精度： 在测试端接口使用 0.1 dB 压缩和 +12 dBm 输入功率

在 10 Hz 中频带宽时仅有 -114 dBm 的低本底噪声

的 S 参数测量

PNA 系列提供大功率信号源和的线性接收机，能够实现市场上的 S 参数测量功率范围。

N5225A网络分析仪50G N5225B参数应用

S 参数（连续波和脉冲）

噪声系数

增益压缩

互调和谐波失真

转换增益/损耗

真正差分激励

毫米波

材料测量

信号完整性

天线测试

硬件选件：

N5225A-200   双端口 单源 基本硬件配置

N5225A-201   双端口 单源 可配置测试集

N5225A-210   双端口 单源 具有计量配置

N5225A-217   双端口 单源 可配置测试集 扩展功率范围

N5225A-219   双端口 单源 可配置测试集 扩展功率范围 配置偏置器

N5225A-400   四端口 单源 基本硬件配置

N5225A-401   四端口 单源 可配置测试集

N5225A-410   四端口 单源 具有计量配置

N5225A-417   四端口 单源 可配置测试集 扩展功率范围

N5225A-419   四端口 单源 可配置测试集 扩展功率范围 配置偏置器

N5225A网络分析仪50G N5225B参数附加选件：

N5225A-008   脉冲射频测量

N5225A-010   时域

N5225A-020   添加IF输入

N5225A-021   添加脉冲调制器到***源

N5225A-022   添加脉冲调制器到第二源

N5225A-025   增加4个脉冲调制器

N5225A-028   标准接收机测量噪声系数

N5225A-080   偏置测量

N5225A-082   标量校准转换器测量

N5225A-083   矢量和标量校准转换器测量

N5225A-084   嵌入式LO测量

N5225A-086   增益压缩应用

N5225A-087   互调失真测量

N5225A-118   快速连续波模式

N5225A-460   集成模式应用

N5225A-551   N端口校准测量

N5225A-088   源相控制

N5225A-089   差分与I/O器件的应用

N5225A-007   自动夹具拆卸

N5225A-015   S参数测量的动态不确定度

N5225A-090   带频谱功能

N5225A-093   扩展频谱到110GHZ

N5225A-094   扩展频谱到110GHZ以上
